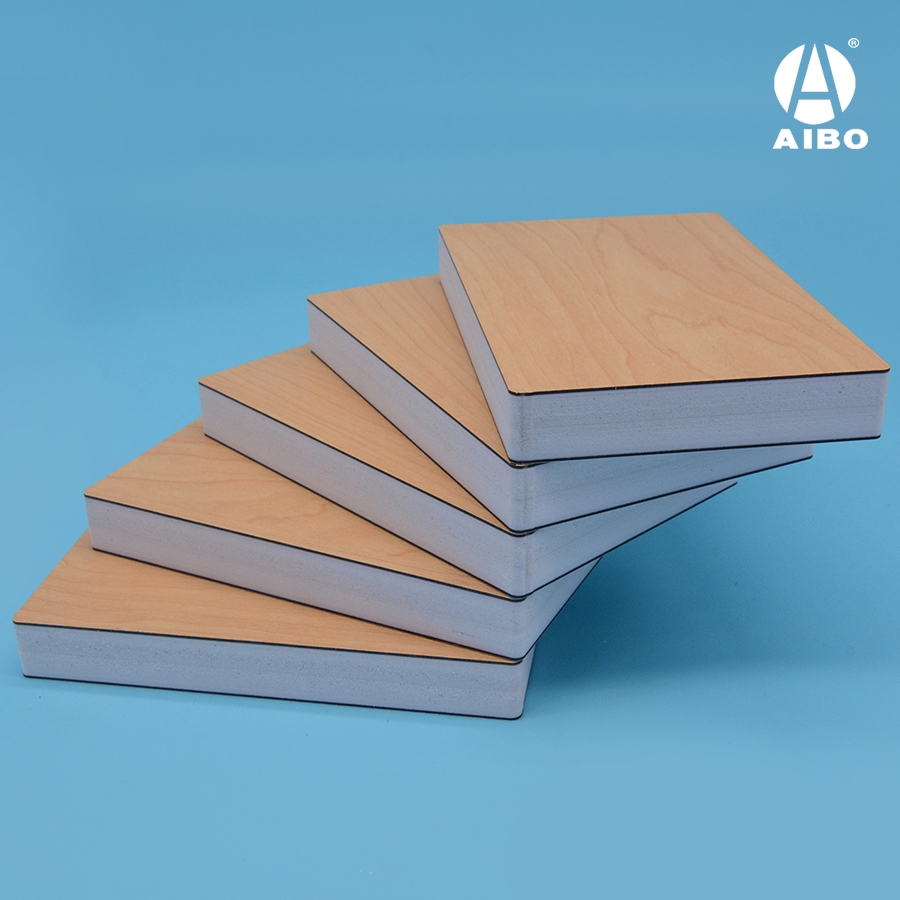

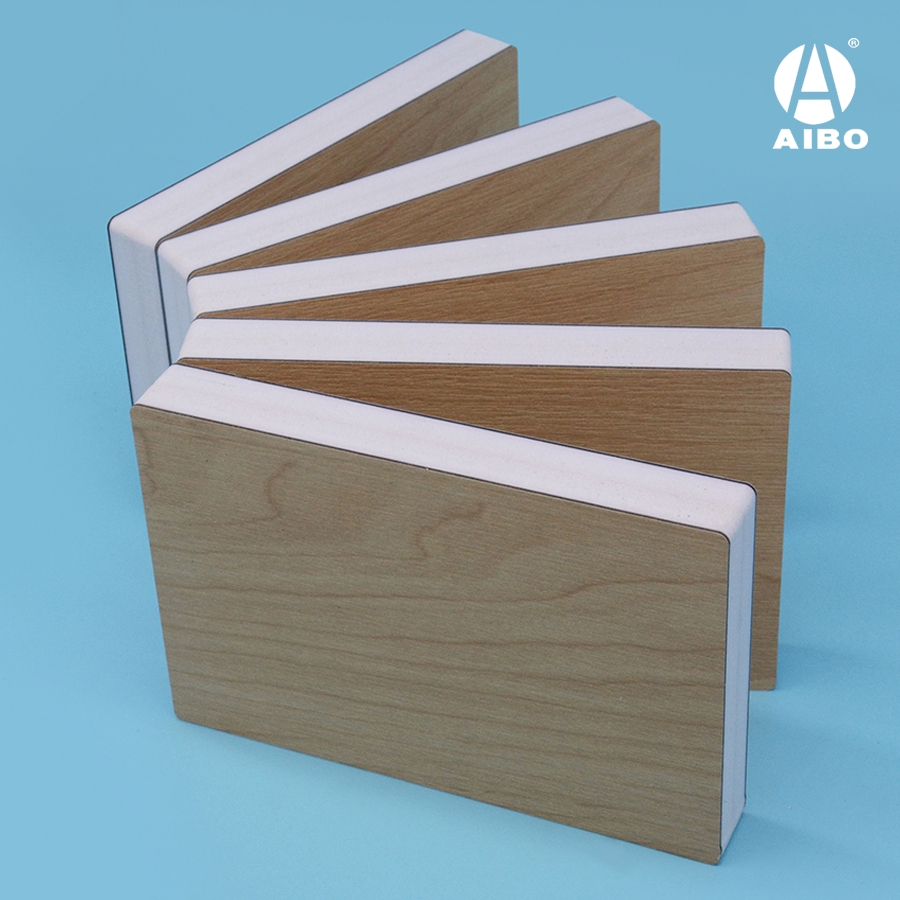

Polyurethane laminated pvc foam panel 4x8 feet

Brand: Aibo

Model No.: TMB-050-180

Substrate:  PVC foam board

Laminated Material: HPL

Standard Size: 1220x2440mm (4'x8')

Substrate Thickness:   18.0 mm

Substrate Density:  0.50  g/cm3

Packing:  In PE  bag /Carton / Pallet

MOQ: 1*20'HQ

Payment Terms:  T/T (50% deposit in advance, 50% balance before shipment);  L/C

Shipment Time: 15-20 days or negotiable


Benefits of PUR Lamination

• Virtually seamless visible glue line with no tacky edge

• Excellent balancing when adhering materials to front and back of core

• Superior bond strength compared to contact adhesive and cold press adhesives

• Superior water-resistant bond compared to contact cement and cold press glues

• Excellent machinability

• Manufactured to order in our in-house facility

• We provide fast, easy turn around domestically and internationally

Board Structure

1. High density PVC foam board ( Celuka foam board & WPC foam board) as the substrate

2. Imported PUR hot melt glue as the adhesive

3. Covering Laminated film/plate as the decorative or protective surface on one side or both sides


Thickness 3-30mm
Substrate Density0.50 ~ 0.90 g/cm3
Size1220X2440mm (4' X 8'); Custom size is available
SubstrateCeluka PVC foam board & WPC foam board
Surface:All kinds of surface patterns via material lamination
Representative  product:      Thickness:  3mm                    Density: 0.75g/cm3
                                     Thickness: 12mm or 15 mm      Density: 0.60 g/cm3
Product related key wordsPVC laminated boardPVC furniture boardLamination board

Product Features

Water & mildew resistant, mothproof, anti-corrosion, no peeling,

Paint-free, environment-friendly, no deformation, diversified lamination material options.


Furnitures: kitchen cabinet, bathroom cabinet,

wine cabinet, wardrobe, desk & bench

Others: exhibit booth, door & window,

wall cladding, partition and many more.

PVC Paint Free Furniture Foam Board PVC Paint Free Furniture Foam Board PVC Paint Free Furniture Foam Board PVC Paint Free Furniture Foam Board

What is PUR ?

PUR is made from polyurathane, and is a string of polymers that share similar chemistry, typically linked together by urethane (the reaction product of an isocyante and alcohol).

PUR or Polyurethane Resin is called 'ideal type of chemical adhesive' because it has various and excellent physical properties such as water resistance, chemical resistance,

oil resistance, resistance to bacteria & ozone, and heat resistance as well. Its best point is the adhesive strength, that is applicable to diverse kinds of lamination materials.

Surface Lamination

1. Laminated Film Options: HPL Sheet, High Glossy Film, Acrylic Sheet, Aluminum Sheet, Pvc, Paper, pet film, etc.

2. Adhesive: Adopting Imported High quality adhesive for the bonding; No formaldehyde and benzene elements, strong adhesion of 40-100 N/cm2 ,, safe and eco-friendly.

3. No delamination under the application environment of -40°C - 100°C.

4. Accepting in-house lamination processing on supplied materials or outsourcing materials.

PVC Paint Free Furniture Foam Board
